 see some really cool stuff here at First Place Supply, but every once in a while we see something SO COOL, we just can't help but show everyone.

The innovative folks over at Movex Innovation have created an electric stair climber that can literally move that pesky refrigerator, cast iron safe, vending machine, or whatever else you've got that's heavy, and in need of a ride up-stairs. Don't believe me? Watch this video...

Interested in one? We thought you would be. Give us a call at 1-866-523-7168 or shoot us an email for a custom quote.

Twin-Track 47 (Two tracks)

Physical characteristics
Frame Steel
Cabinet Aluminium
Length 47 in 1194 mm
Width 29.25 in 743 mm
Height 13.5 in 343 mm
Weight (with front handle) 630 lbs 286 Kg
Weight of Backrest 15 lbs 6,8 Kg
Ground Clearance 2.5 in 63.5 mm
Load bearing capacity (inclined) 600 lbs 272 Kg
Load bearing capacity (flat) 2200 lbs 1000 Kg
Maximum inclination 40°
Linear speed 44 ft/min 13.4 m/min
Power
Motor (2) Industrial
Horse Power (HP) 1 HP (x2)
Gearbox 100:1 (x2)
Power Features
Battery included 2
Integrated AC-DC Battery Charger 1
Battery Amperage 85 Amps (x2)
Operating voltage 24 VDC
Continuous Run-Time* 3 hours approx.  (without load, flat surface)
Twin-Track 66 (Two tracks)
Physical characteristics
Frame Steel
Cabinet Aluminium
Length 66 in 1676 mm
Width 29.25 in 749 mm
Height 13.5 in 343 mm
Weight (with front handle) 820 lbs 372 Kg
Weight of Backrest 20 lbs 9 Kg
Ground Clearance 2.5 in 63.5 mm
Load bearing capacity (inclined) 1100 lbs 500 Kg
Load bearing capacity (flat) 2200 lbs 1000 Kg
Maximum inclination 40°
Linear speed 44 ft/min 13,4 m/min
Power
Motor (2) Industrial
Horse Power (HP) 1 HP (x2)
Gearbox 100:1 (x2)
Power Features
Battery included 2
Integrated AC-DC Battery Charger 1
Battery Amperage 85 Amps (x2)
Operating voltage 24 VDC
Continuous Run-Time* 3 hours approx.  (without load, flat surface)

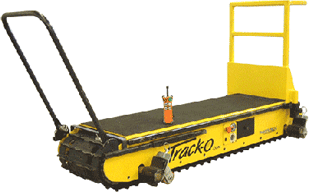

Track-O 75 (One track)
Physical characteristics
Frame Steel
Cabinet Aluminium
Length 75 in 1905 mm
Width 30 in 762 mm
Height 12 in 305 mm
Weight 575 lbs 261 Kg
Ground Clearance 2.5 in 63.5 mm
Load bearing capacity (inclined) 1100 lbs 500 Kg
Load bearing capacity (flat) 1500 lbs 680 Kg
Maximum inclination 40°
Linear speed 22 ft/min 6.7 m/min
Power
Motor (1) Industrial
Horse Power (HP) ¾ HP
Gearbox 200:1 (x1)
Power Features
Battery included 2
Integrated AC-DC Battery Charger Included
Battery Amperage 85 Amps (x2)
Operating voltage 24 VDC
Continuous Run-Time* 2 hours approx. (without load, flat surface)
Cross-Country Utility (Two tracks)
Physical characteristics
Frame Steel
Cabinet Aluminium
Length 72 in 1829 mm
Width 31 in 787 mm
Height 44 in 1118 mm
Weight 1583 lbs 718 Kg
Ground Clearance 9 in 229 mm
Load bearing capacity (flat) 1800 lbs 816 Kg
Inclinaison maximale 40°
Linear speed 44 ft/min 13.4 m/min
Power
Motor (2) Industrial
Horse Power (HP) 1 HP (x2)
Gearbox 100:1 (x2)
Power Features
Battery included 4
Integrated AC-DC Battery Charger & Inverter 120V 1
Battery Amperage 135 Amps (x2)
Operating voltage 24 VDC
Continuous Run-Time* 4 hours approx.  (without load, flat surface)
Minidozer (Two tracks)
Physical characteristics
Frame Steel
Cabinet Aluminium
Length 104 in 2642 mm
Width 48 in 1219 mm
Height (Frame) 25.5 in 648 mm
Height (Bucket elevated to max.) 67.5 in 171.5 cm
Weight 2500 lbs 1134 Kg
Linear speed 74 ft/min 22.5 m/min
Power
Motor 2
Horse Power (HP) 2 HP
Gearbox 75:1
Hydraulic Motor Bucket 1 x 2 HP
Power Features
Battery included 8 x 6V
Integrated AC-DC Battery Charger 1
Battery Amperage 60 Amps
Operating voltage 24 VDC
Full recharge time/battery 8 hours
Continuous Run-Time* 8 hours approx.  (flat surface)
